AP SLR-TSAqua-Proof Self Lube Roller Chain for Drive
ANSI｜Single Pitch｜Anti Corrosion｜Lube Free

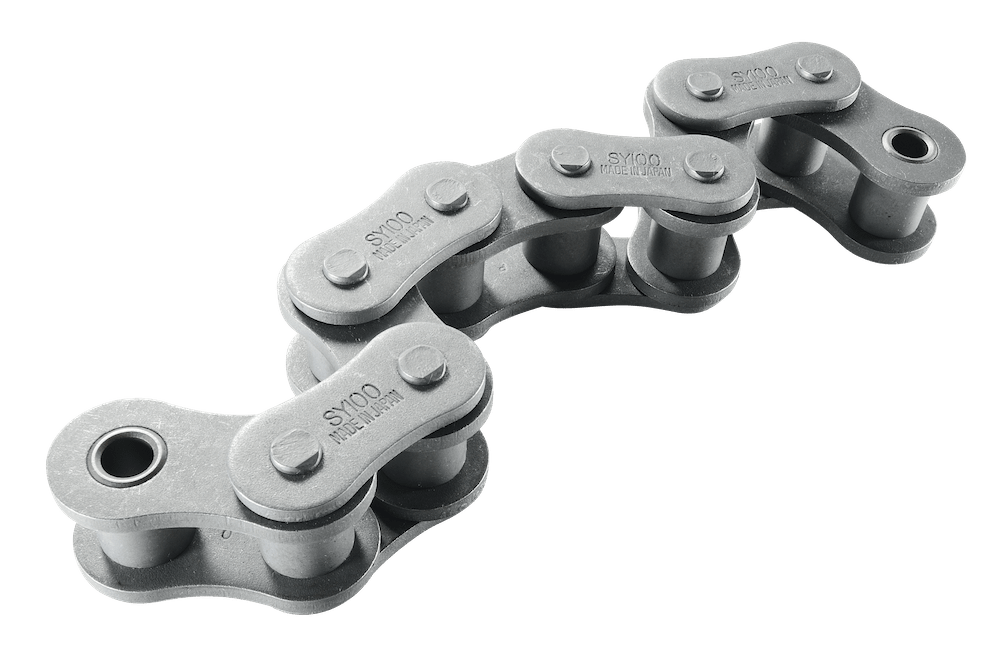

“AP SLR-TS” type roller chains are designed for drive chains with the same strength of carbon steel roller chains and with corrosion resistance and self lubrication. All components, except the oil-impregnated bushings, are treated with a dual layer coat treatment process before the chain is assembled to insure maximum protection. “AP SLR-TS” type roller chain is lubricated prior to delivery.
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Average Chain Weight |
|||||||||||
| Pitch | Roller | Pin | Plate | Trans. Pitch |
||||||||||
| Width | Dia. | Dia. | Length | Height | Thickness | |||||||||

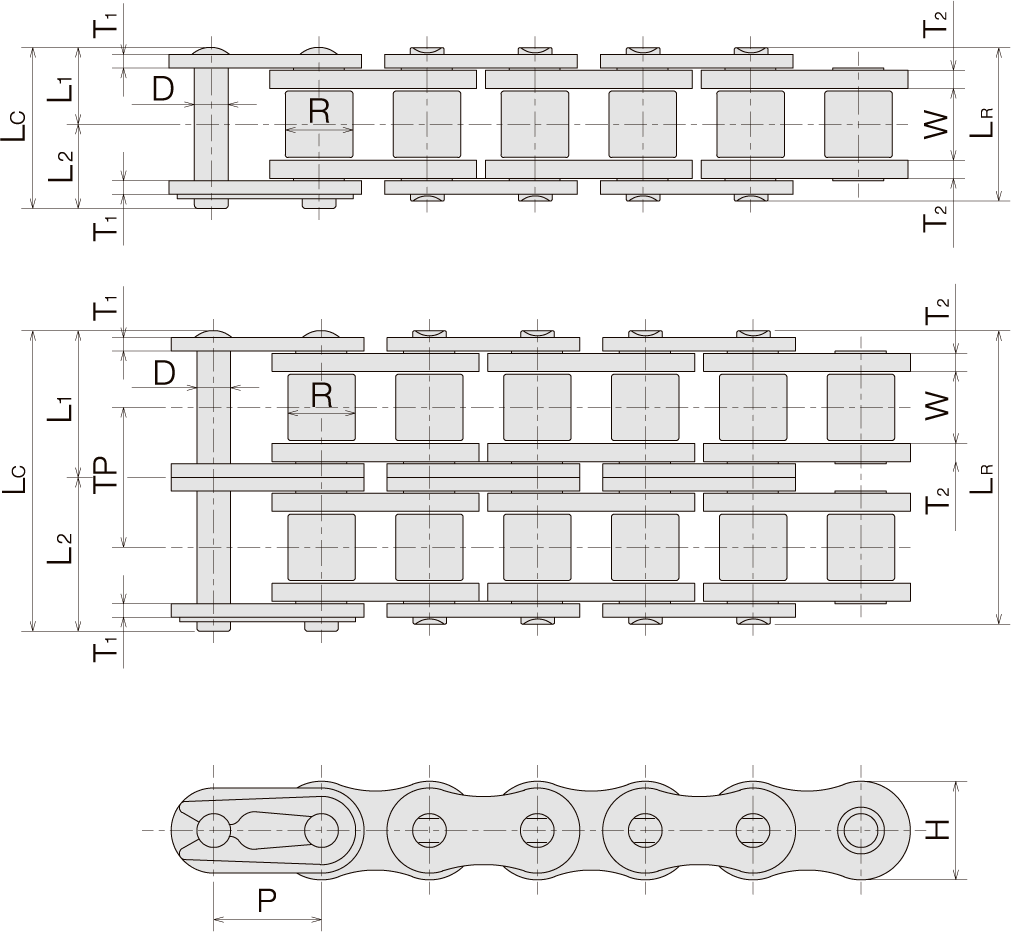

| P | W | R | D | LR | LC | L1 | L2 | H | T1 | T2 | TP | KN | kg/m | |
| SY 40-1 AP SLR-TS | 12.70 | 7.95 | 7.92 | 3.96 | 17.5 | 19.6 | 8.8 | 10.8 | 11.7 | 1.5 | 2.0 | - | 19.10 | 0.7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY 40-2 AP SLR-TS | 33.1 | 35.2 | 16.6 | 18.6 | 15.6 | 38.20 | 1.3 | |||||||
| SY 50-1 AP SLR-TS | 15.875 | 9.53 | 10.16 | 5.08 | 21.3 | 23.3 | 10.7 | 12.6 | 14.6 | 2.0 | 2.4 | - | 31.90 | 1.1 |
| SY 50-2 AP SLR-TS | 40.5 | 42.5 | 20.3 | 22.2 | 19.2 | 63.80 | 2.0 | |||||||
| SY 60-1 AP SLR-TS | 19.05 | 12.70 | 11.91 | 5.95 | 27.4 | 29.8 | 13.7 | 16.1 | 17.5 | 2.4 | 3.2 | - | 43.10 | 1.7 |
| SY 60-2 AP SLR-TS | 52.3 | 54.8 | 26.2 | 28.6 | 24.9 | 86.20 | 3.3 | |||||||
| SY 80-1 AP SLR-TS | 25.40 | 15.88 | 15.88 | 7.93 | 34.1 | 37.4 | 17.1 | 20.3 | 23.4 | 3.2 | 4.0 | - | 78.50 | 2.7 |
| SY 80-2 AP SLR-TS | 65.2 | 68.5 | 35.6 | 35.9 | 31.1 | 157.00 | 5.1 | |||||||
| SY 100-1 AP SLR-TS | 31.75 | 19.05 | 19.05 | 9.53 | 41.0 | 44.8 | 20.5 | 24.3 | 29.3 | 4.0 | 4.8 | - | 118.00 | 4.3 |
| SY 100-2 AP SLR-TS | 78.6 | 82.4 | 39.3 | 43.1 | 37.6 | 236.00 | 8.2 | |||||||
| SY 120-1 AP SLR-TS | 38.10 | 25.40 | 22.23 | 11.10 | 51.1 | 55.2 | 25.6 | 29.6 | 35.1 | 4.8 | 5.6 | - | 167.00 | 6.0 |
| SY 120-2 AP SLR-TS | 99.1 | 103.2 | 49.6 | 53.6 | 48.0 | 334.00 | 11.7 | |||||||
AP SLR-TS type roller chains have a longer pin length than the SBR type roller chain. Make sure there will be no interference with equipment. AP SLR-TS type multiple strand chains are not designed to be used with standard sprockets. Connecting links are "cotter" style for all sizes above 100 AP SLR-TS. Consult SUGIYAMA for offset links. Service life decreases dramatically if the lubricant in the oil-impregnated bushings is depleted. The lubrication in the oil-impregnated bushings will seep out rapidly when the operating temperature exceeds 70℃. A wet or dusty environment may lead to premature wearing. It is not recommended for applications which are exposed to chemicals or water, or associated with a shock load. Do not use Aqua-Proof chains in applications where chain may come in direct contact with food or where coating flakes or wear dust can contaminate food.
