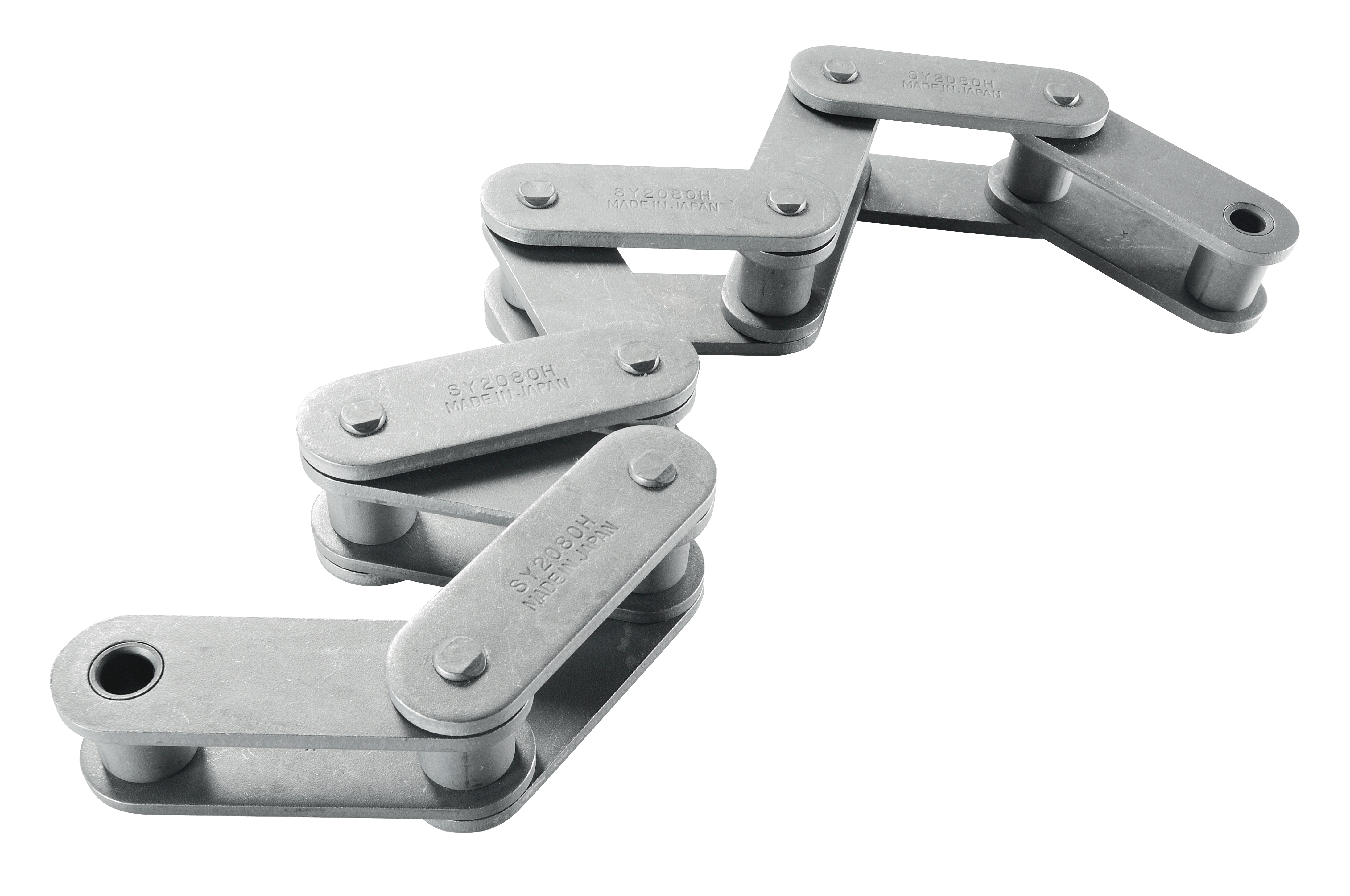

APAqua-Proof Roller Chain
ANSI｜Double Pitch｜Anti Corrosion
“AP” type roller chains comply with the RoHS Directive. Its corrosion resistance is far superior to nickel or zinc plated chains, yet maintains the strength and durability of the SUGIYAMA carbon steel roller chain. “AP” type roller chains are the perfect choice when both corrosion resistance and high strength are needed.
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Maximum Allowable Load |
Average Chain Weight |
||||||||||
| Pitch | Roller | Pin | Plate | |||||||||||
| Width | Roller | Dia. | Dia. | Length | Height | Thickness | ||||||||
| P | W | Type | R | D | LR | LC | L1 | L2 | H | T | KN | KN | kg/m | |
| SY A2040 AP | 25.40 | 7.95 | S | 7.92 | 3.96 | 16.6 | 18.3 | 8.3 | 10.0 | 11.4 | 1.5 | 16.90 | 3.60 | 0.43 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY A2050 AP | 31.75 | 9.53 | S | 10.16 | 5.08 | 20.5 | 22.2 | 10.2 | 12.0 | 15.0 | 2.0 | 27.50 | 6.28 | 0.73 |
| SY A2060 AP | 38.10 | 12.70 | S | 11.91 | 5.95 | 25.7 | 27.6 | 12.8 | 14.8 | 17.0 | 2.4 | 40.20 | 8.63 | 1.03 |
| SY A2080 AP | 50.80 | 15.88 | S | 15.88 | 7.93 | 33.0 | 35.5 | 16.4 | 19.1 | 22.6 | 3.2 | 68.60 | 14.70 | 1.71 |
| SY C2040 AP | 25.40 | 7.95 | S | 7.92 | 3.96 | 16.6 | 18.3 | 8.3 | 10.0 | 11.4 | 1.5 | 16.90 | 3.63 | 0.48 |
| SY C2042 AP | R | 15.88 | 0.82 | |||||||||||
| SY C2050 AP | 31.75 | 9.53 | S | 10.16 | 5.08 | 20.5 | 22.2 | 10.2 | 12.0 | 15.0 | 2.0 | 27.50 | 6.28 | 0.82 |
| SY C2052 AP | R | 19.05 | 1.26 | |||||||||||
| SY C2060H AP | 38.10 | 12.70 | S | 11.91 | 5.95 | 28.8 | 31.0 | 14.4 | 16.6 | 17.0 | 3.2 | 40.20 | 8.63 | 1.38 |
| SY C2062H AP | R | 22.23 | 2.08 | |||||||||||
| SY C2080H AP | 50.80 | 15.88 | S | 15.88 | 7.93 | 36.4 | 38.8 | 17.8 | 21.0 | 22.6 | 4.0 | 68.60 | 14.70 | 2.32 |
| SY C2082H AP | R | 28.58 | 3.36 | |||||||||||
| SY C2100H AP | 63.50 | 19.05 | S | 19.05 | 9.53 | 42.4 | 46.0 | 21.2 | 24.8 | 28.6 | 4.8 | 107.90 | 22.60 | 3.46 |
| SY C2102H AP | R | 39.67 | 5.64 | |||||||||||
| SY C2120H AP | 76.20 | 25.40 | S | 22.23 | 11.10 | 52.8 | 57.2 | 26.4 | 30.8 | 34.9 | 5.6 | 151.00 | 30.40 | 4.92 |
| SY C2122H AP | R | 44.45 | 7.87 | |||||||||||
| SY C2160H AP | 101.60 | 31.75 | S | 28.58 | 14.28 | 67.9 | 73.1 | 34.0 | 39.1 | 47.6 | 7.2 | 257.90 | 53.00 | 8.02 |
| SY C2162H AP | R | 57.15 | 12.77 | |||||||||||
The figure-eight shaped link plates are for drive chains. Roller Type "S" indicates a standard roller. Roller Type "R" indicates an oversized carrier roller. Roller Type "R" can be manufactured with plastic oversized carrier rollers. Do not use Aqua-Proof chains in applications where chain may come in direct contact with food or where coating flakes or wear dust can contaminate food.
