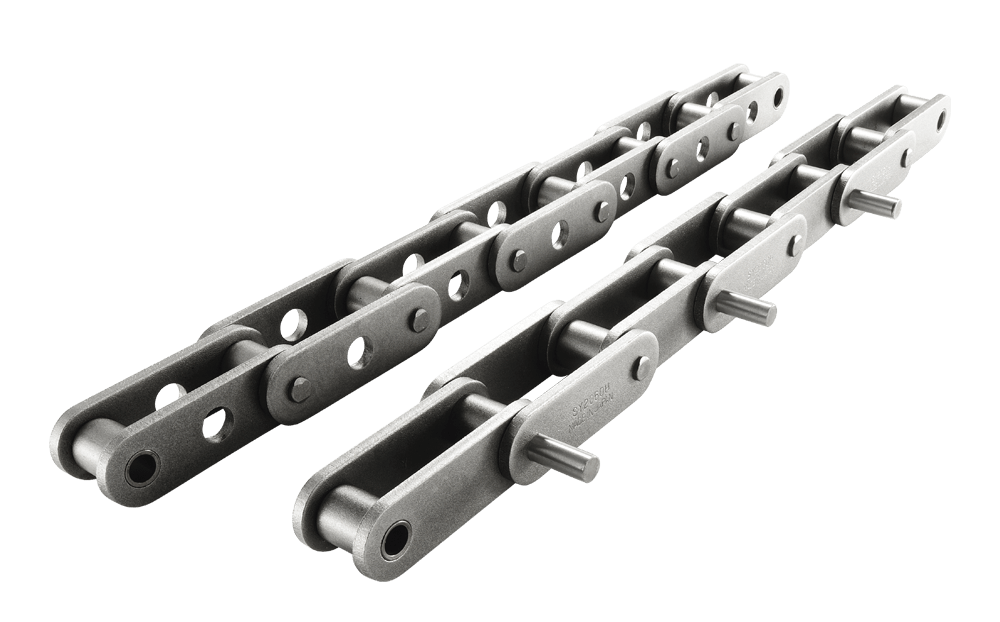

ATTAttachment Roller Chain
ANSI｜Double Pitch｜Attachment
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Average Chain Weight |
||||||||||||
| Pitch | Roller | Pin | Plate | ||||||||||||
| Width | Roller | Dia. | Dia. | Length | Height | Thickness | |||||||||
| P | W | Type | R | D | LR | LC | L1 | L2 | L3 | L4 | H | T | KN | kg/m | |
| SY C2040 | 25.40 | 7.95 | S | 7.92 | 3.96 | 16.6 | 18.3 | 8.3 | 10.0 | 9.5 | 16.8 | 11.4 | 1.5 | 16.90 | 0.48 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY C2042 | R | 15.88 | 0.82 | ||||||||||||
| SY C2050 | 31.75 | 9.53 | S | 10.16 | 5.08 | 20.5 | 22.2 | 10.2 | 12.0 | 11.9 | 21.1 | 15.0 | 2.0 | 27.50 | 0.82 |
| SY C2052 | R | 19.05 | 1.26 | ||||||||||||
| SY C2060H | 38.10 | 12.70 | S | 11.91 | 5.95 | 28.8 | 31.0 | 14.4 | 16.6 | 14.3 | 27.5 | 17.0 | 3.2 | 40.20 | 1.38 |
| SY C2062H | R | 22.23 | 2.08 | ||||||||||||
| SY C2080H | 50.80 | 15.88 | S | 15.88 | 7.93 | 36.4 | 38.8 | 17.8 | 21.0 | 19.1 | 35.6 | 22.6 | 4.0 | 68.60 | 2.32 |
| SY C2082H | R | 28.58 | 3.36 | ||||||||||||
| SY C2100H | 63.50 | 19.05 | S | 19.05 | 9.53 | 42.4 | 46.0 | 21.2 | 24.8 | 23.8 | 43.2 | 28.6 | 4.8 | 107.90 | 3.46 |
| SY C2102H | R | 39.67 | 5.64 | ||||||||||||
| SY C2120H | 76.20 | 25.40 | S | 22.23 | 11.10 | 52.8 | 57.2 | 26.4 | 30.8 | 28.6 | 53.0 | 34.9 | 5.6 | 151.00 | 4.92 |
| SY C2122H | R | 44.45 | 7.87 | ||||||||||||
| SY C2160H | 101.60 | 31.75 | S | 28.58 | 14.28 | 67.9 | 73.1 | 34.0 | 39.1 | 38.1 | 69.0 | 47.6 | 7.2 | 257.90 | 8.02 |
| SY C2162H | R | 57.15 | 12.77 | ||||||||||||

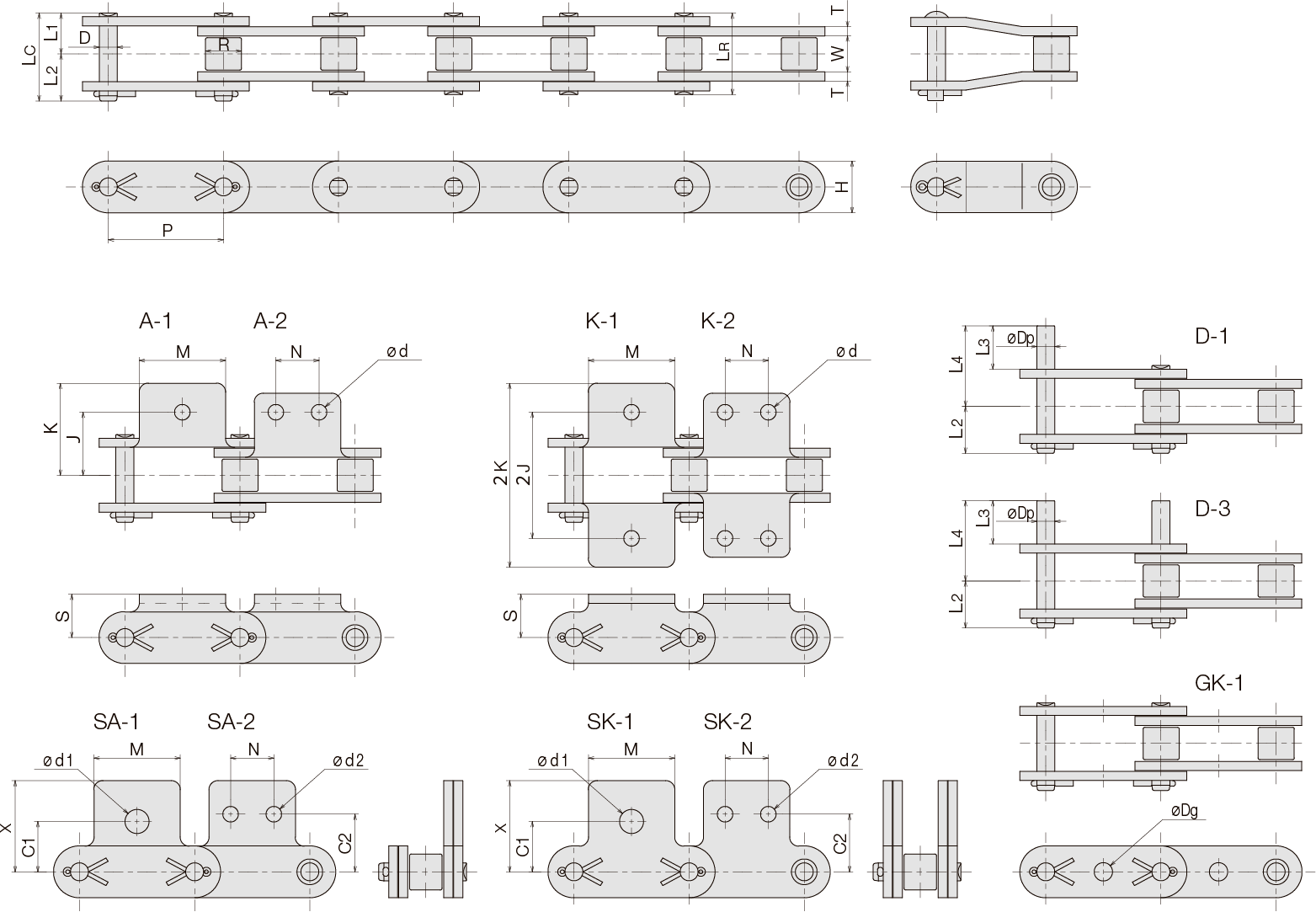

| SY Chain No. | Dimensions - mm | Additional Weight |
||||||||||||||
| M | d | N | S | X | A-1, A-2 | K-1, K-2 | SA-1, SK-1 | SA-2, SK-2 | GK-1 | |||||||
| D-1 | ||||||||||||||||
| J | K | 2J | 2K | C1 | d1 | C2 | d2 | N | Dg | g/pc | ||||||
| SY C2040 | 19.1 | 3.6 | 9.5 | 9.1 | 19.8 | 12.7 | 19.1 | 25.4 | 38.2 | 11.1 | 5.2 | 13.5 | 3.6 | 9.5 | 4.1 | 0.9 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY C2042 | ||||||||||||||||
| SY C2050 | 23.8 | 5.2 | 11.9 | 11.1 | 24.6 | 15.9 | 24.2 | 31.8 | 48.4 | 14.3 | 6.8 | 15.9 | 5.2 | 11.9 | 6.4 | 1.8 |
| SY C2052 | ||||||||||||||||
| SY C2060H | 28.6 | 5.2 | 14.3 | 14.7 | 30.6 | 21.4 | 31.2 | 42.8 | 62.4 | 17.5 | 8.7 | 19.1 | 5.2 | 14.3 | 6.4 | 3 |
| SY C2062H | ||||||||||||||||
| SY C2080H | 38.1 | 6.8 | 19.1 | 19.1 | 40.2 | 27.8 | 40.6 | 55.6 | 81.2 | 22.2 | 10.3 | 25.4 | 6.8 | 19.1 | 8.1 | 7 |
| SY C2082H | ||||||||||||||||
| SY C2100H | 47.6 | 8.8 | 23.8 | 23.4 | 50.3 | 33.3 | 50 | 66.6 | 100.0 | 28.6 | 14 | 31.8 | 8.8 | 23.8 | 10.1 | 12 |
| SY C2102H | ||||||||||||||||
| SY C2120H | 57.2 | 10.5 | 28.6 | 27.8 | 61.1 | 39.7 | 61.9 | 79.4 | 123.8 | 33.3 | 16 | 37.3 | 10.5 | 28.6 | 12.1 | 20 |
| SY C2122H | ||||||||||||||||
| SY C2160H | 76.2 | 14.0 | 38.1 | 36.5 | 76.2 | 52.4 | 76.1 | 104.8 | 152.2 | 44.5 | 21 | 50.8 | 14 | 38.1 | - | 44 |
| SY C2162H | ||||||||||||||||
ANSI ダブルピッチの継手リンクは割りピン式が標準仕様です。Roller Type "S"は、標準タイプのローラーです。Roller Type "R"は、キャリアータイプのローラーです。Roller Type "R"は、プラスチックタイプのローラーも製作可能です。
