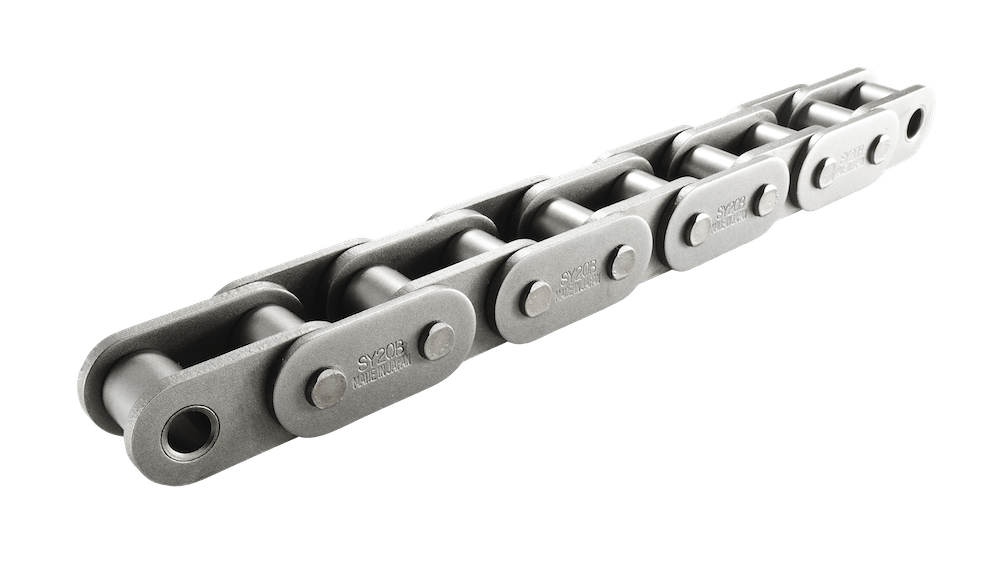

FFlat Sidebar Roller Chain
BS｜Single Pitch｜Miscellaneous
“F” type roller chains offer high fatigue resistance and are suited for conveyor based products and/or sliding on a surface.
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Maximum Allowable Load |
Average Chain Weight |
||||||||||
| Pitch | Roller | Pin | Plate | |||||||||||
| Width | Dia. | Dia. | Length | Height | Thickness | |||||||||
| P | W | R | D | LR | LC | L1 | L2 | H | T1 | T2 | KN | KN | kg/m | |
| SY 08B-1 F | 12.70 | 7.75 | 8.51 | 4.45 | 16.7 | 18.2 | 8.4 | 9.8 | 11.8 | 1.5 | 19.60 | 3.14 | 0.68 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY 10B-1 F | 15.875 | 9.65 | 10.16 | 5.08 | 19.4 | 20.7 | 9.7 | 11.0 | 14.7 | 1.65 | 24.60 | 4.90 | 0.99 | |
| SY 12B-1 F | 19.05 | 11.68 | 12.07 | 5.72 | 22.0 | 23.6 | 11.0 | 12.6 | 16.1 | 1.8 | 32.20 | 7.06 | 1.27 | |
| SY 16B-1 F | 25.40 | 17.02 | 15.88 | 8.26 | 35.2 | 38.2 | 17.6 | 20.6 | 20.3 | 3.2 | 4.0 | 66.60 | 12.60 | 2.9 |
| SY 20B-1 F | 31.75 | 19.56 | 19.05 | 10.16 | 40.2 | 44.0 | 20.1 | 23.9 | 26.0 | 3.5 | 4.5 | 105.00 | 19.60 | 4.21 |
| SY 24B-1 F | 38.10 | 25.40 | 25.40 | 14.63 | 53.4 | 58.1 | 26.7 | 31.4 | 32.7 | 5.0 | 5.9 | 177.80 | 27.50 | 8.16 |
| SY 28B-1 F | 44.45 | 31.00 | 27.94 | 15.88 | 65.1 | 70.5 | 32.6 | 37.9 | 36.6 | 6.3 | 7.4 | 222.20 | 34.30 | 10.37 |
| SY 32B-1 F | 50.80 | 31.00 | 29.21 | 17.81 | 65.0 | 71.1 | 32.5 | 38.6 | 41.7 | 6.3 | 6.9 | 275.00 | 39.20 | 11.11 |
Connecting links are "cotter" style for all sizes above 20B F. Offset links are not available.
