HPHollow Pin Chain
ANSI｜Double Pitch｜Miscellaneous

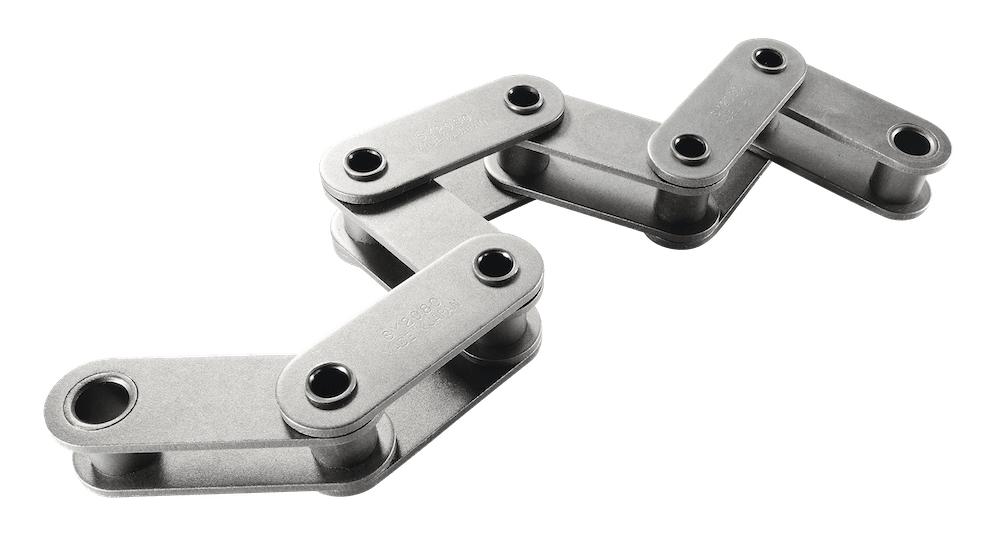

“HP” type chains are constructed with cold-forged solid bushings. This process assures that the inside diameter of the bushing’s hollow center is completely cylindrical all the way through. This unique hollow pin feature allows for easy insertion of cross rods without damaging the chain or rods.
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Maximum Allowable Load |
Average Chain Weight |
|||||||||||
| Pitch | Roller | Pin | Plate | ||||||||||||
| Width | Roller | Dia. | Out Dia. | In Dia. | Length | Height | Thickness | ||||||||
| P | W | Type | R | D | d | LR | LC | L1 | L2 | H | T | KN | KN | kg/m | |
| SY C2040 HP | 25.40 | 7.95 | S | 7.92 | 5.63 | 4.03 | 16.7 | 17.6 | 8.4 | 9.2 | 12.0 | 1.5 | 12.70 | 1.77 | 0.46 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY C2042 HP | R | 15.88 | 0.81 | ||||||||||||
| SY C2050 HP | 31.75 | 9.53 | S | 10.16 | 7.09 | 5.13 | 20.1 | 21.5 | 10.1 | 11.4 | 15.0 | 2.0 | 19.60 | 3.14 | 0.76 |
| SY C2052 HP | R | 19.05 | 1.25 | ||||||||||||
| SY C2060 HP | 38.10 | 12.70 | S | 11.91 | 8.29 | 6.04 | 26.0 | 27.2 | 13.0 | 14.2 | 18.1 | 2.4 | 28.40 | 4.22 | 1.12 |
| SY C2062 HP | R | 22.23 | 1.79 | ||||||||||||
| SY C2080 HP | 50.80 | 15.88 | S | 15.88 | 11.34 | 8.08 | 32.4 | 34.3 | 16.2 | 18.1 | 24.1 | 3.2 | 51.00 | 7.65 | 1.98 |
| SY C2082 HP | R | 28.58 | 3.17 | ||||||||||||
| SY C2082H HP | 35.6 | 37.5 | 17.8 | 19.7 | 4.0 | 58.00 | 3.22 | ||||||||
Roller Type "S" indicates a bushed chain which made without rollers. Roller Type "R" indicates an oversized carrier roller. Roller Type "R" can be manufactured with plastic oversized carrier rollers.
