SBRPremium Standard Roller Chain
ANSI｜Double Pitch｜Standard

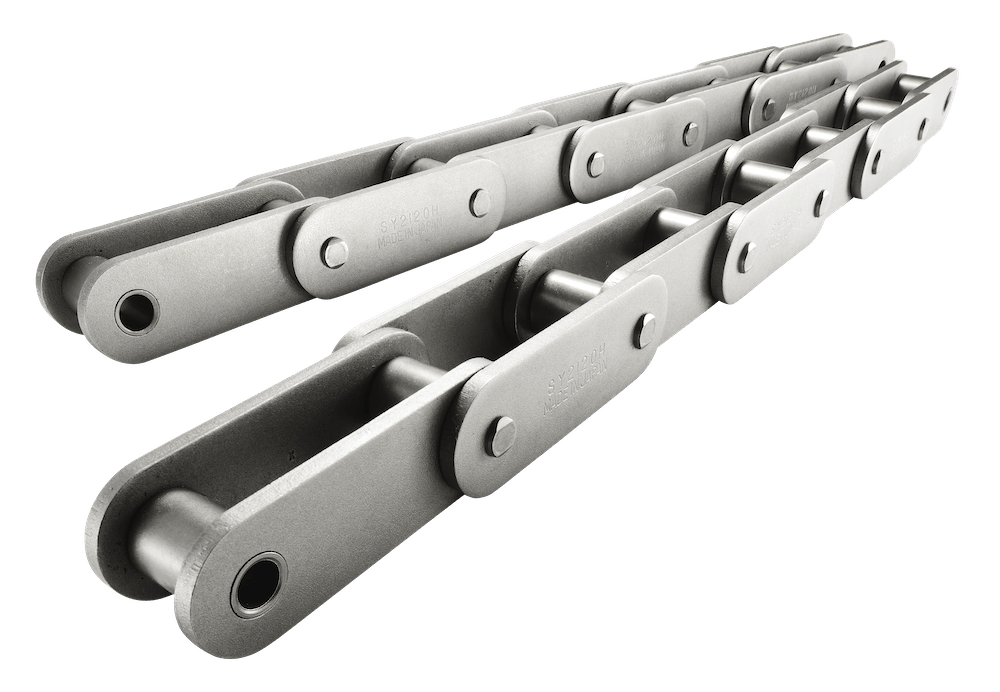

“SBR” (Solid Bushing & Roller) is the product type of SUGIYAMA premium standard roller chain. SUGIYAMA offers two different plate shapes of double pitch roller chains. One has a figure-eight shaped link plates; the other has straight edged link plates. The straight edged type is available with standard rollers or with over-sized carrier rollers. Learn more about SBR.
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Maximum Allowable Load |
Average Chain Weight |
||||||||||
| Pitch | Roller | Pin | Plate | |||||||||||
| Width | Roller | Dia. | Dia. | Length | Height | Thickness | ||||||||
| P | W | Type | R | D | LR | LC | L1 | L2 | H | T | KN | KN | kg/m | |
| SY A2040 | 25.40 | 7.95 | S | 7.92 | 3.96 | 16.6 | 18.3 | 8.3 | 10.0 | 11.4 | 1.5 | 16.90 | 3.63 | 0.43 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY A2050 | 31.75 | 9.53 | S | 10.16 | 5.08 | 20.5 | 22.2 | 10.2 | 12.0 | 15.0 | 2.0 | 27.50 | 6.28 | 0.73 |
| SY A2060 | 38.10 | 12.70 | S | 11.91 | 5.95 | 25.7 | 27.6 | 12.8 | 14.8 | 17.0 | 2.4 | 40.20 | 8.63 | 1.03 |
| SY A2080 | 50.80 | 15.88 | S | 15.88 | 7.93 | 33.0 | 35.5 | 16.4 | 19.1 | 22.6 | 3.2 | 68.60 | 14.70 | 1.71 |
| SY C2040 | 25.40 | 7.95 | S | 7.92 | 3.96 | 16.6 | 18.3 | 8.3 | 10.0 | 11.4 | 1.5 | 16.90 | 3.63 | 0.48 |
| SY C2042 | R | 15.88 | 0.82 | |||||||||||
| SY C2050 | 31.75 | 9.53 | S | 10.16 | 5.08 | 20.5 | 22.2 | 10.2 | 12.0 | 15.0 | 2.0 | 27.50 | 6.28 | 0.82 |
| SY C2052 | R | 19.05 | 1.26 | |||||||||||
| SY C2060H | 38.10 | 12.70 | S | 11.91 | 5.95 | 28.8 | 31.0 | 14.4 | 16.6 | 17.0 | 3.2 | 40.20 | 8.63 | 1.38 |
| SY C2062H | R | 22.23 | 2.08 | |||||||||||
| SY C2080H | 50.80 | 15.88 | S | 15.88 | 7.93 | 36.4 | 38.8 | 17.8 | 21.0 | 22.6 | 4.0 | 68.60 | 14.70 | 2.32 |
| SY C2082H | R | 28.58 | 3.36 | |||||||||||
| SY C2100H | 63.50 | 19.05 | S | 19.05 | 9.53 | 42.4 | 46.0 | 21.2 | 24.8 | 28.6 | 4.8 | 107.90 | 22.60 | 3.46 |
| SY C2102H | R | 39.67 | 5.64 | |||||||||||
| SY C2120H | 76.20 | 25.40 | S | 22.23 | 11.10 | 52.8 | 57.2 | 26.4 | 30.8 | 34.9 | 5.6 | 151.00 | 30.40 | 4.92 |
| SY C2122H | R | 44.45 | 7.87 | |||||||||||
| SY C2160H | 101.60 | 31.75 | S | 28.58 | 14.28 | 67.9 | 73.1 | 34.0 | 39.1 | 47.6 | 7.2 | 257.90 | 53.00 | 8.02 |
| SY C2162H | R | 57.15 | 12.77 | |||||||||||
The figure-eight shaped link plates are for drive chains. Roller Type "S" indicates a standard roller. Roller Type "R" indicates an oversized carrier roller. Roller Type "R" can be manufactured with plastic oversized carrier rollers.
