ALAL Leaf Chain
ANSI｜Single Pitch｜Miscellaneous
“AL”タイプのリーフチエンは、同じピッチサイズの杉山製標準ローラーチエンのピンリンクプレート形状と板厚で構成されています。主に、低中荷重で衝撃が少ない条件での使用を想定しています。

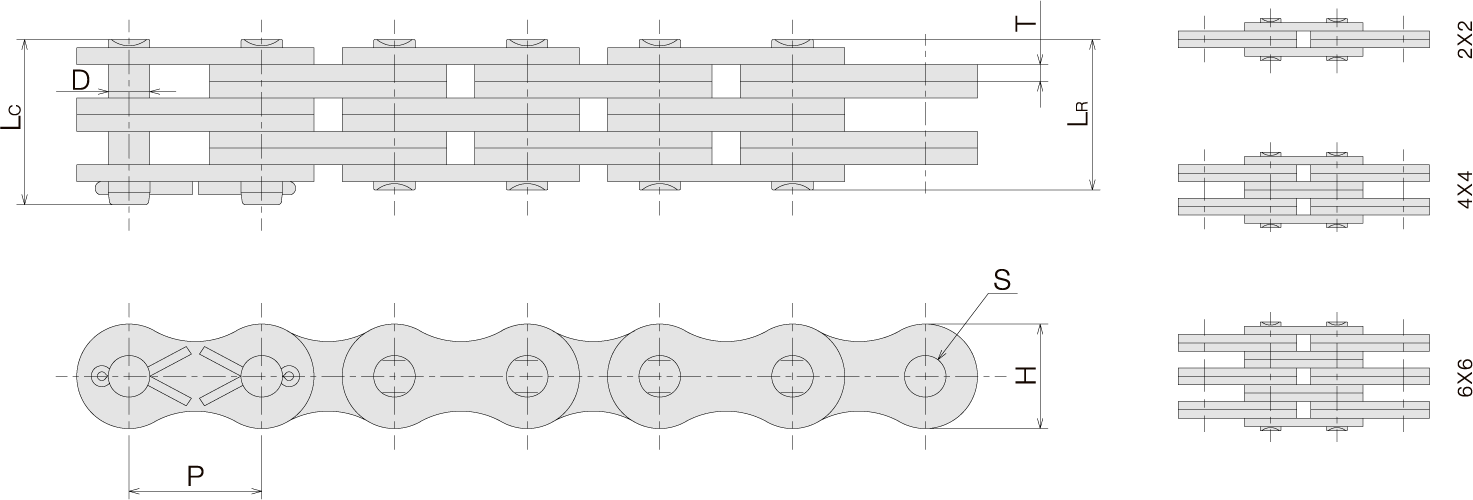

| SY Chain No. | Lacing | Dimensions - mm | Average Tensile Strength |
Average Chain Weight |
||||||
| Pitch | Pin | Plate | Hole Dia |
|||||||
| Dia. | Length | Height | Thickness | |||||||
| P | D | LR | LC | H | T | S | KN | kg/m | ||
| SY AL422 | 2x2 | 12.70 | 3.96 | 8.4 | 10.4 | 10.3 | 1.5 | 4.03 | 18.60 | 0.36 |
|---|---|---|---|---|---|---|---|---|---|---|
| SY AL444 | 4x4 | 14.6 | 16.6 | 37.30 | 0.70 | |||||
| SY AL466 | 6x6 | 21.2 | 23.1 | 55.90 | 1.04 | |||||
| SY AL522 | 2x2 | 15.88 | 5.08 | 10.5 | 12.5 | 12.7 | 2 | 5.15 | 30.40 | 0.58 |
| SY AL544 | 4x4 | 19.0 | 21.0 | 60.80 | 1.16 | |||||
| SY AL566 | 6x6 | 27.6 | 29.5 | 94.10 | 1.73 | |||||
| SY AL622 | 2x2 | 19.05 | 5.95 | 12.4 | 14.8 | 15.2 | 2.4 | 6.04 | 43.10 | 0.81 |
| SY AL644 | 4x4 | 22.2 | 24.6 | 86.30 | 1.68 | |||||
| SY AL666 | 6x6 | 32.6 | 34.7 | 129.00 | 2.46 | |||||
| SY AL822 | 2x2 | 25.40 | 7.93 | 16.6 | 19.8 | 20.2 | 3.2 | 8 | 72.60 | 1.42 |
| SY AL844 | 4x4 | 29.4 | 32.4 | 145.00 | 2.88 | |||||
| SY AL866 | 6x6 | 43.0 | 46.2 | 218.00 | 4.23 | |||||
| SY AL1022 | 2x2 | 31.75 | 9.53 | 19.6 | 23.6 | 24.5 | 4 | 9.59 | 108.00 | 2.46 |
| SY AL1044 | 4x4 | 36.2 | 39.9 | 216.00 | 4.81 | |||||
| SY AL1066 | 6x6 | 53.5 | 57.1 | 324.00 | 7.24 | |||||
| SY AL1222 | 2x2 | 38.10 | 11.1 | 24.0 | 28.3 | 29.2 | 4.8 | 11.22 | 152.00 | 3.35 |
| SY AL1244 | 4x4 | 43.7 | 47.9 | 304.00 | 6.58 | |||||
| SY AL1266 | 6x6 | 63.4 | 67.6 | 456.00 | 9.82 | |||||
| SY AL1422 | 2x2 | 44.45 | 12.7 | 27.8 | 32.6 | 34.2 | 5.6 | 12.82 | 205.00 | 4.99 |
| SY AL1444 | 4x4 | 51.2 | 55.6 | 410.00 | 9.56 | |||||
| SY AL1466 | 6x6 | 73.6 | 78.2 | 615.00 | 14.13 | |||||
| SY AL1622 | 2x2 | 50.80 | 14.28 | 31.8 | 36.8 | 40.3 | 6.4 | 14.47 | 269.00 | 6.35 |
| SY AL1644 | 4x4 | 58.4 | 63.3 | 539.00 | 12.62 | |||||
| SY AL1666 | 6x6 | 84.8 | 88.8 | 809.00 | 18.87 | |||||
