SBSide Bow Roller Chain
ANSI｜Double Pitch｜Miscellaneous

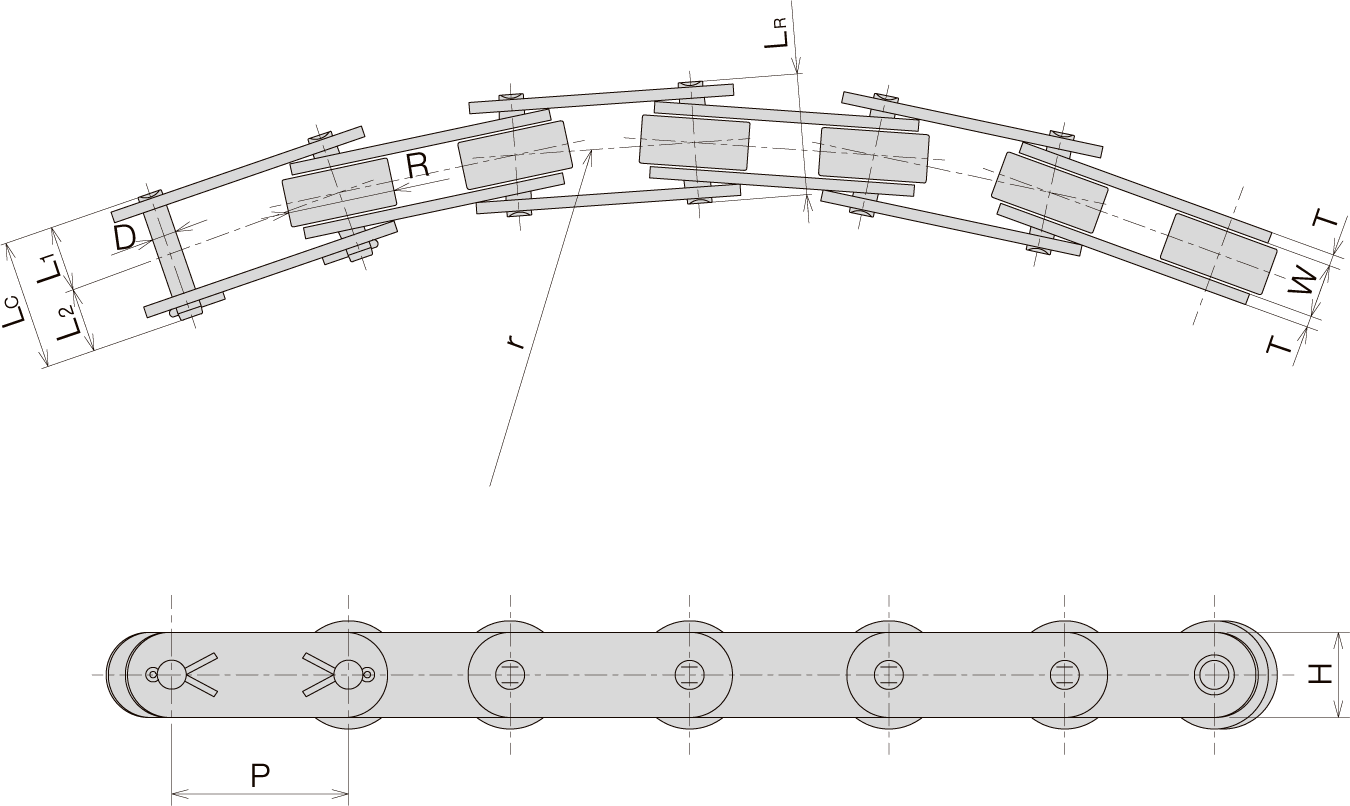

“SB” type roller chains provide extra clearance between pins, bushings, and link plates, and give the chain freedom to slightly twist or curve on a horizontal plane.
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Maximum Allowable Load |
Average Chain Weight |
|||||||||||
| Pitch | Roller | Pin | Plate | Min. Curve Radius |
|||||||||||
| Width | Roller | Dia. | Dia. | Length | Height | Thickness | |||||||||
| P | W | Type | R | D | LR | LC | L1 | L2 | H | T | r | KN | KN | kg/m | |
| SY C2040 SB | 25.40 | 7.95 | S | 7.92 | 3.58 | 16.9 | 18.9 | 8.5 | 10.4 | 11.4 | 1.5 | 700 | 14.90 | 1.77 | 0.48 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY C2042 SB | R | 15.88 | 0.82 | ||||||||||||
| SY C2050 SB | 31.75 | 9.53 | S | 10.16 | 4.45 | 21.1 | 23.1 | 10.6 | 12.5 | 15.0 | 2.0 | 800 | 22.10 | 3.14 | 0.82 |
| SY C2052 SB | R | 19.05 | 1.26 | ||||||||||||
| SY C2060 SB | 38.10 | 12.70 | S | 11.91 | 5.08 | 26.3 | 28.1 | 13.2 | 14.9 | 17.0 | 2.4 | 1000 | 29.40 | 4.22 | 1.20 |
| SY C2062 SB | R | 22.23 | 2.01 | ||||||||||||
Roller Type "S" indicates a standard roller. Roller Type "R" indicates an oversized carrier roller. Roller Type "R" can be manufactured with plastic oversized carrier rollers. Offset links are not available.
