SSStainless Steel Roller Chain
ANSI｜Double Pitch｜Anti Corrosion

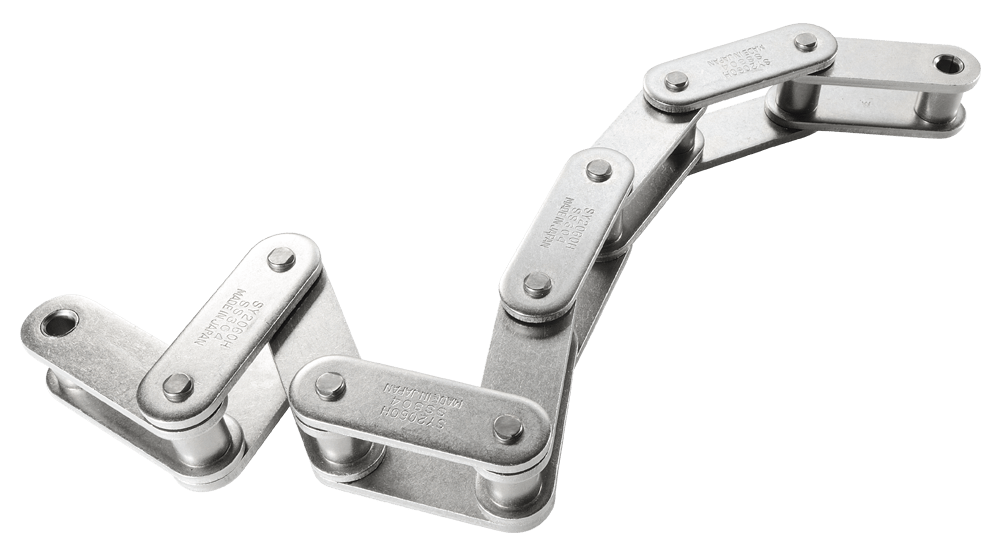

“SS” type roller chains are used in highly corrosive or extreme temperature environments. All component parts of SUGIYAMA stainless steel roller chains are made of 304 stainless steel to achieve the utmost corrosion and temperature resistance. 316 and 600 stainless steel roller chains are also available upon request.
| SY Chain No. | Dimension - mm | Maximum Allowable Load |
Average Chain Weight |
||||||||||
| Pitch | Roller | Pin | Plate | ||||||||||
| Width | Roller | Dia. | Dia. | Length | Height | Thickness | |||||||
| P | W | Type | R | D | LR | LC | L1 | L2 | H | T | KN | kg/m | |
| SY A2040 SS | 25.40 | 7.95 | S | 7.92 | 3.96 | 16.9 | 18.3 | 8.3 | 10.0 | 11.4 | 1.5 | 0.44 | 0.43 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY A2050 SS | 31.75 | 9.53 | S | 10.16 | 5.08 | 20.5 | 22.2 | 10.2 | 12.0 | 15.0 | 2.0 | 0.68 | 0.73 |
| SY A2060 SS | 38.10 | 12.70 | S | 11.91 | 5.95 | 25.7 | 27.6 | 12.8 | 14.8 | 17.0 | 2.4 | 1.03 | 1.03 |
| SY A2080 SS | 50.80 | 15.88 | S | 15.88 | 7.93 | 33.0 | 35.5 | 16.4 | 19.1 | 22.6 | 3.2 | 1.77 | 1.71 |
| SY C2040 SS | 25.40 | 7.95 | S | 7.92 | 3.96 | 16.9 | 18.3 | 8.3 | 10.0 | 11.4 | 1.5 | 0.44 | 0.48 |
| SY C2042 SS | R | 15.88 | 0.82 | ||||||||||
| SY C2050 SS | 31.75 | 9.53 | S | 10.16 | 5.08 | 20.5 | 22.2 | 10.2 | 12.0 | 15.0 | 2.0 | 0.68 | 0.82 |
| SY C2052 SS | R | 19.05 | 1.26 | ||||||||||
| SY C2060H SS | 38.10 | 12.70 | S | 11.91 | 5.95 | 28.8 | 31.0 | 14.4 | 16.6 | 17.0 | 3.2 | 1.03 | 1.38 |
| SY C2062H SS | R | 22.23 | 2.08 | ||||||||||
| SY C2080H SS | 50.80 | 15.88 | S | 15.88 | 7.93 | 35.7 | 38.8 | 17.8 | 21.0 | 22.6 | 4.0 | 1.77 | 2.32 |
| SY C2082H SS | R | 28.58 | 3.36 | ||||||||||
| SY C2100H SS | 63.50 | 19.05 | S | 19.05 | 9.53 | 42.4 | 46.0 | 21.2 | 24.8 | 28.6 | 4.8 | 2.55 | 3.46 |
| SY C2102H SS | R | 39.67 | 5.64 | ||||||||||
| SY C2120H SS | 76.20 | 25.40 | S | 22.23 | 11.10 | 52.8 | 57.2 | 26.4 | 30.8 | 34.9 | 5.6 | 3.92 | 4.92 |
| SY C2122H SS | R | 44.45 | 7.87 | ||||||||||
| SY C2160H SS | 101.60 | 31.75 | S | 28.58 | 14.28 | 67.9 | 73.1 | 34.0 | 39.1 | 47.6 | 7.2 | 6.37 | 8.02 |
| SY C2162H SS | R | 57.15 | 12.77 | ||||||||||
The figure-eight shaped link plates are for drive chains. Roller Type "S" indicates a standard roller. Roller Type "R" indicates an oversized carrier roller. Roller Type "R" can be manufactured with plastic oversized carrier rollers. Stainless steel chains are not lubricated prior to delivery. It is recommended to lubricate stainless steel chains before use except when the chain is exposed to water. Stainless steel chains may suffer articulation problems in early stages if they are used without lubrication.
