NPNickel Plated Roller Chain
BS｜Single Pitch｜Anti Corrosion
“NP” type roller chains are ideal for outdoor operations and in situations where machinery and equipment must be run in a lightly corrosive atmosphere or where good chain appearance may be desired. All components are plated before assembly to ensure complete protection of all parts. “NP” type roller chain is not lubricated prior to delivery unless otherwise specified. Please consult SUGIYAMA if lubrication is necessary before delivery.

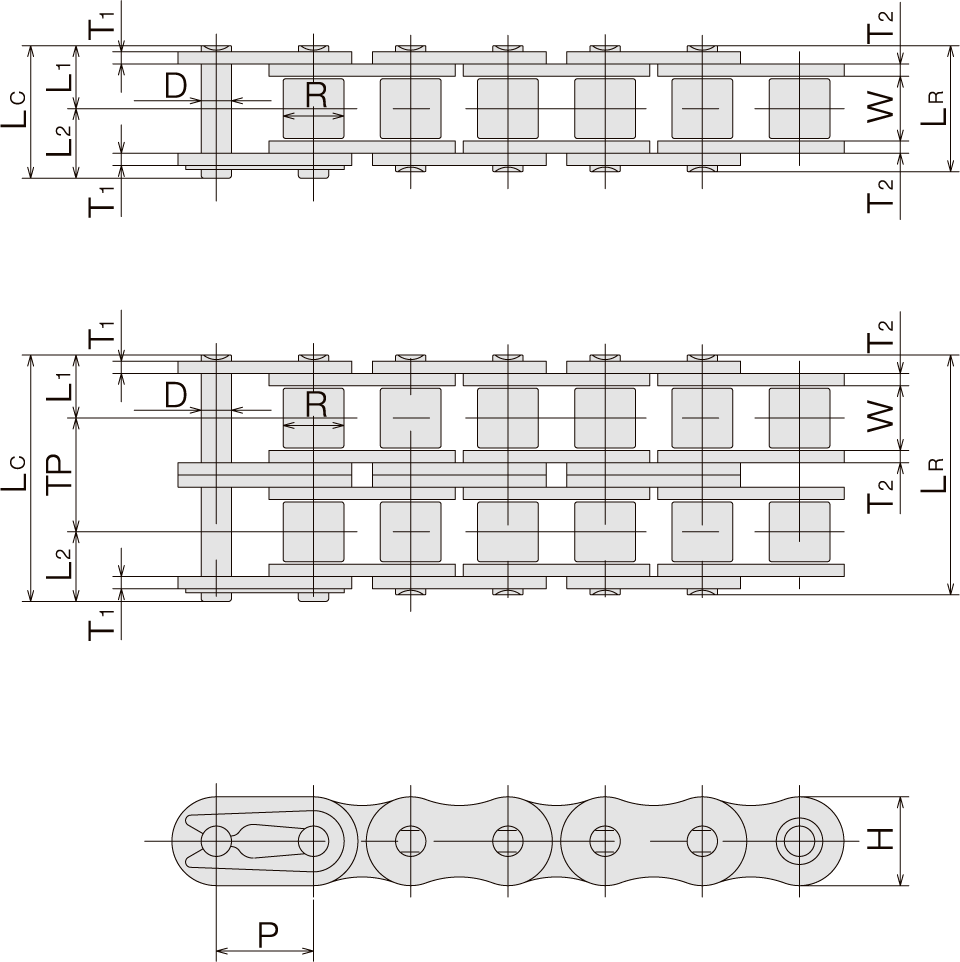

| SY Chain No. | Dimension - mm | Average Tensile Strength |
Maximum Allowable Load |
Average Chain Weight |
|||||||||||
| Pitch | Roller | Pin | Plate | Trans. Pitch |
|||||||||||
| Width | Dia. | Dia. | Length | Height | Thickness | ||||||||||
| P | W | R | D | LR | LC | L1 | L2 | H | T1 | T2 | TP | KN | KN | kg/m | |
| SY 08B-1 NP | 12.70 | 7.75 | 8.51 | 4.45 | 16.7 | 18.2 | 8.4 | 9.8 | 11.8 | 1.5 | 13.92 | 19.60 | 3.14 | 0.61 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY 08B-2 NP | 30.6 | 31.9 | 15.3 | 16.6 | 34.60 | 5.35 | 1.26 | ||||||||
| SY 10B-1 NP | 15.875 | 9.65 | 10.16 | 5.08 | 19.4 | 20.7 | 9.7 | 11.0 | 14.7 | 1.65 | 16.59 | 24.60 | 4.90 | 0.89 | |
| SY 10B-2 NP | 36.0 | 37.3 | 18.0 | 19.3 | 49.40 | 8.33 | 1.79 | ||||||||
| SY 12B-1 NP | 19.05 | 11.68 | 12.07 | 5.72 | 22.0 | 23.6 | 11.0 | 12.6 | 16.1 | 1.8 | 19.46 | 32.20 | 7.06 | 1.14 | |
| SY 12B-1 NP | 41.6 | 43.2 | 20.8 | 22.4 | 64.40 | 12.00 | 2.28 | ||||||||
| SY 16B-1 NP | 25.40 | 17.02 | 15.88 | 8.26 | 35.2 | 38.2 | 17.6 | 20.6 | 20.6 | 3.2 | 4.0 | 31.88 | 66.60 | 12.60 | 2.59 |
| SY 16B-2 NP | 67.2 | 70.1 | 33.6 | 36.5 | 117.80 | 21.40 | 5.13 | ||||||||
| SY 20B-1 NP | 31.75 | 19.56 | 19.05 | 10.16 | 40.2 | 44.0 | 20.1 | 23.9 | 26.4 | 3.5 | 4.5 | 36.45 | 105.00 | 19.60 | 3.76 |
| SY 20B-2 NP | 76.8 | 80.6 | 38.4 | 42.2 | 188.90 | 33.30 | 7.26 | ||||||||
The thickness of the intermediate plate of the multiple strand 08B NP chain is 1.25mm. Connecting links are "cotter" style for size 20B NP. Takes account of a 35% reduction of fatigue strength when a single pitch offset link is used. Do not use nickel plated chains in environments where coating flakes and wear dust can present problems.
