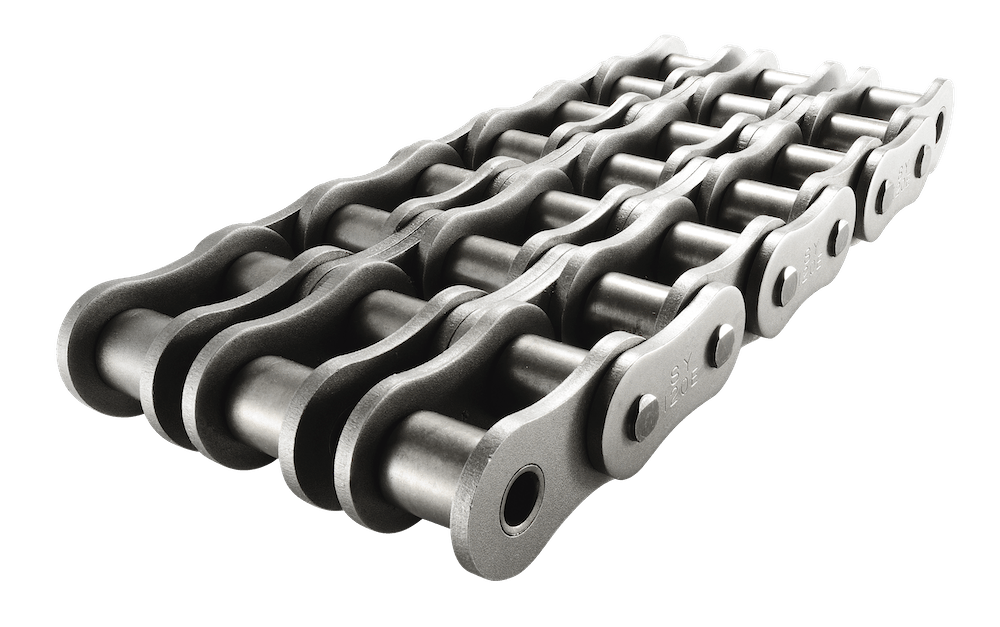

EE Roller Chain
ANSI｜Single Pitch｜Heavy Duty
“E” type roller chains are made using high quality alloys and through-hardened pins to better resist fatigue failure in applications that are subject to high shock loads. Please specify if the chain is being utilized in oil field applications.

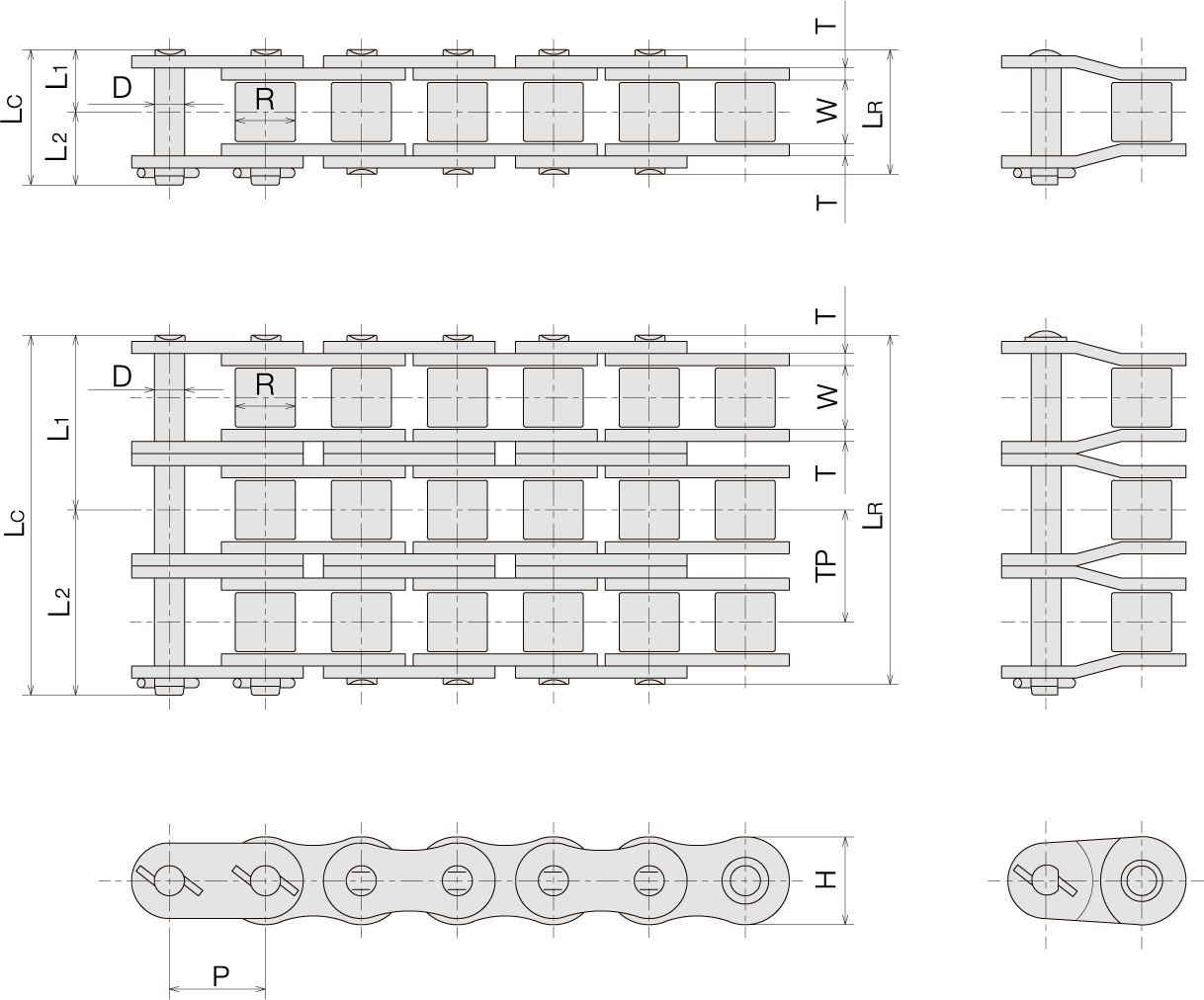

| SY Chain No. | Dimension - mm | Average Tensile Strength |
Maximum Allowable Load |
Average Chain Weight |
||||||||||
| Pitch | Roller | Pin | Plate | Trans. Pitch |
||||||||||
| Width | Dia. | Dia. | Length | Height | Thickness | |||||||||
| P | W | R | D | LR | LC | L1 | L2 | H | T | TP | KN | KN | kg/m | |
| SY 80-1 E | 25.40 | 15.88 | 15.88 | 7.93 | 33.0 | 35.5 | 16.4 | 19.1 | 23.4 | 3.2 | - | 79.40 | 18.40 | 2.52 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY 80-2 E | 61.6 | 64.5 | 30.8 | 33.7 | 29.3 | 159.00 | 26.70 | 5.10 | ||||||
| SY 80-3 E | 90.9 | 94.1 | 45.5 | 48.6 | 238.00 | 39.30 | 7.68 | |||||||
| SY 100-1 E | 31.75 | 19.05 | 19.05 | 9.53 | 39.4 | 43.0 | 19.7 | 23.3 | 29.3 | 4.0 | - | 119.00 | 28.30 | 3.91 |
| SY 100-2 E | 75.1 | 78.8 | 37.6 | 41.2 | 35.8 | 238.00 | 40.80 | 7.74 | ||||||
| SY 100-3 E | 110.9 | 114.6 | 55.5 | 59.1 | 357.00 | 60.00 | 11.58 | |||||||
| SY 120-1 E | 38.10 | 25.40 | 22.23 | 11.10 | 49.5 | 53.4 | 24.8 | 28.6 | 35.1 | 4.8 | - | 174.00 | 38.00 | 5.76 |
| SY 120-2 E | 94.9 | 98.8 | 47.5 | 51.3 | 45.4 | 348.00 | 54.20 | 11.49 | ||||||
| SY 120-3 E | 140.3 | 144.2 | 70.2 | 74.0 | 522.00 | 79.80 | 17.20 | |||||||
| SY 140-1 E | 44.45 | 25.40 | 25.40 | 12.70 | 54.0 | 58.3 | 27.0 | 31.3 | 40.9 | 5.6 | - | 227.00 | 50.30 | 7.41 |
| SY 140-2 E | 102.9 | 107.2 | 51.5 | 55.7 | 48.9 | 454.00 | 73.20 | 14.63 | ||||||
| SY 140-3 E | 151.7 | 156.3 | 75.9 | 80.4 | 681.00 | 108.00 | 21.91 | |||||||
| SY 160-1 E | 50.80 | 31.75 | 28.58 | 14.28 | 64.3 | 68.7 | 32.2 | 36.5 | 46.7 | 6.4 | - | 294.00 | 66.30 | 9.79 |
| SY 160-2 E | 122.8 | 127.2 | 61.4 | 65.8 | 58.5 | 588.00 | 95.00 | 19.45 | ||||||
| SY 160-3 E | 181.3 | 185.7 | 90.7 | 95.0 | 882.00 | 140.00 | 29.17 | |||||||
| SY 180-1 E | 57.15 | 35.70 | 35.70 | 17.45 | 72.5 | 78.4 | 36.3 | 42.1 | 52.5 | 7.2 | - | 363.00 | 70.60 | 13.39 |
| SY 180-2 E | 138.2 | 144.0 | 69.1 | 74.9 | 65.8 | 726.00 | 102.00 | 26.62 | ||||||
| SY 180-3 E | 204.5 | 210.2 | 102.3 | 107.9 | 1,089.00 | 150.00 | 39.85 | |||||||
| SY 200-1 E | 63.50 | 38.10 | 39.67 | 19.83 | 78.50 | 87.0 | 39.3 | 47.7 | 59.8 | 8.0 | - | 470.00 | 82.30 | 16.93 |
| SY 200-2 E | 150.2 | 158.7 | 75.1 | 83.6 | 71.6 | 940.00 | 130.00 | 33.73 | ||||||
| SY 200-3 E | 221.7 | 230.2 | 110.9 | 119.3 | 1,410.00 | 191.00 | 50.53 | |||||||
| SY 240-1 E | 76.20 | 47.63 | 47.63 | 23.78 | 95.5 | 104.0 | 47.8 | 56.2 | 70.3 | 9.5 | - | 677.00 | 112.80 | 23.64 |
| SY 240-2 E | 183.4 | 191.8 | 91.7 | 100.1 | 87.8 | 1,354.00 | 179.00 | 47.13 | ||||||
| SY 240-3 E | 271.3 | 279.6 | 135.7 | 143.9 | 2,031.00 | 263.00 | 70.61 | |||||||
Connecting links are "cotter" style for size 80 E. E type multiple strand chains are standardly designed for loose-fit center plate construction. E type multiple strand chains can be constructed with semi press-fit center plates upon request. BCL connecting links are standardly equipped for E type multiple strand chains with semi press-fit center plate construction. Takes account of a 35% reduction of fatigue strength when a single pitch offset link is used.
