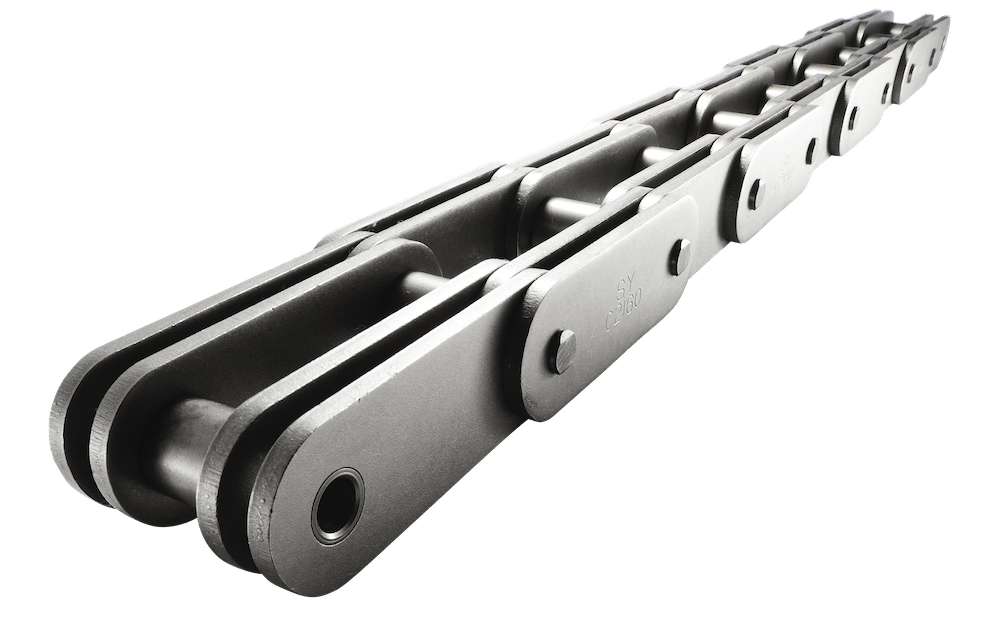

DCDouble Capacity Roller Chain
ANSI｜Double Pitch｜Heavy Duty
“DC” type roller chains consist of twice the number of side plates as the single strand chain, and its working load is close to the standard double strand chain.
“DC” type roller chains run on standard roller chain sprockets, and the ideal chain speed is less than 50 m/min.
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Average Chain Weight |
|||||||||
| Pitch | Roller | Pin | Plate | |||||||||
| Width | Dia. | Dia. | Length | Height | Thickness | |||||||

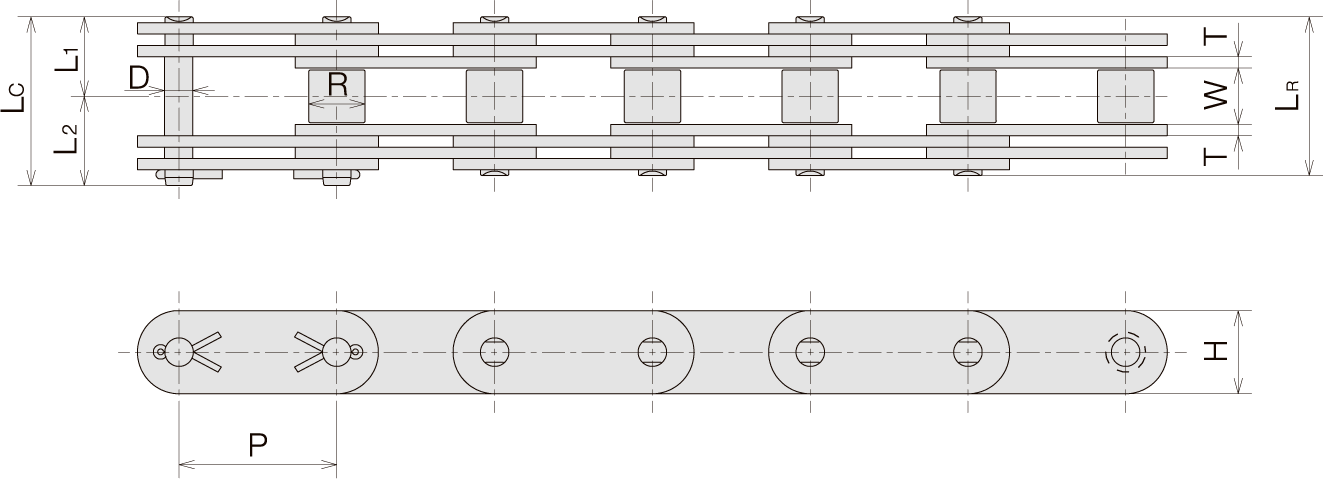

| P | W | R | D | LR | LC | L1 | L2 | H | T | KN | kg/m | |
| SY C2040 DC | 25.40 | 7.95 | 7.92 | 3.96 | 23.0 | 24.7 | 11.5 | 13.2 | 11.4 | 1.5 | 38.20 | 0.50 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY C2050 DC | 31.75 | 9.53 | 10.16 | 5.08 | 28.8 | 30.5 | 14.4 | 16.1 | 15.0 | 2.0 | 63.80 | 0.85 |
| SY C2060H DC | 38.10 | 12.70 | 11.91 | 5.95 | 42.2 | 44.2 | 21.1 | 23.1 | 17.0 | 3.2 | 109.80 | 1.46 |
| SY C2080H DC | 50.80 | 15.88 | 15.88 | 7.93 | 52.0 | 55.1 | 26.0 | 29.1 | 22.6 | 4.0 | 180.40 | 2.50 |
| SY C2100H DC | 63.50 | 19.05 | 19.05 | 9.53 | 62.0 | 65.6 | 31.0 | 34.6 | 28.6 | 4.8 | 274.00 | 3.81 |
| SY C2120H DC | 76.20 | 25.40 | 22.23 | 11.10 | 77.8 | 82.1 | 38.9 | 43.2 | 34.9 | 5.6 | 372.00 | 5.50 |
| SY C2160H DC | 101.60 | 31.75 | 28.58 | 14.28 | 97.4 | 102.6 | 48.7 | 53.9 | 47.6 | 7.2 | 612.00 | 9.27 |
Offset links are not available. DC type chains are designed to be used with standard sprockets.
