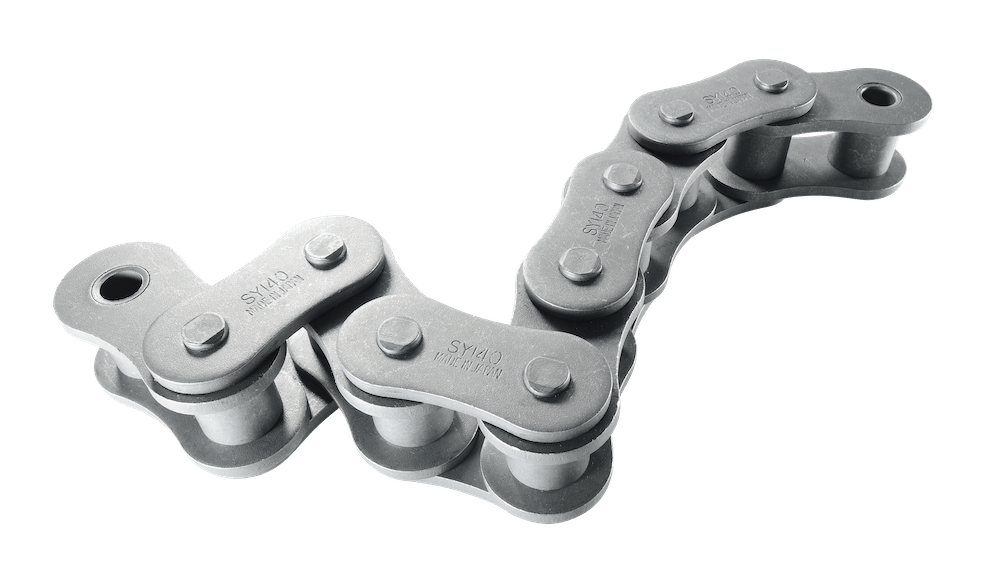

APAqua-Proof Roller Chain
ANSI｜Single Pitch｜Anti Corrosion
“AP”タイプはRoHS指令に対応しています。耐食性はニッケルメッキや亜鉛メッキに比べてはるかに優れており、杉山製の標準ローラーチエンの強度と耐久性を兼ね備えています。“AP”タイプは、耐食性と高い強度が必要な雰囲気に最適です。
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Maximum Allowable Load |
Average Chain Weight |
||||||||||
| Pitch | Roller | Pin | Plate | Trans. Pitch |
||||||||||
| Width | Dia. | Dia. | Length | Height | Thickness | |||||||||
| P | W | R | D | LR | LC | L1 | L2 | H | T | TP | KN | KN | kg/m | |
| SY 35-1 AP | 9.525 | 4.78 | 5.08 | 3.58 | 12.0 | 12.9 | 6.0 | 6.9 | 9.0 | 1.25 | - | 10.80 | 2.48 | 0.34 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SY 35-2 AP | 22.1 | 23.0 | 11.1 | 11.9 | 1.01 | 21.60 | 3.67 | 0.63 | ||||||
| SY 35-3 AP | 32.2 | 33.1 | 16.1 | 17.0 | 32.40 | 5.40 | 0.92 | |||||||
| SY 40-1 AP | 12.70 | 7.95 | 7.92 | 3.96 | 16.6 | 17.7 | 8.3 | 9.4 | 11.7 | 1.5 | - | 19.10 | 4.17 | 0.60 |
| SY 40-2 AP | 30.8 | 32.2 | 15.4 | 16.8 | 14.4 | 38.20 | 6.17 | 1.22 | ||||||
| SY 40-3 AP | 45.4 | 46.6 | 22.7 | 23.9 | 57.30 | 9.08 | 1.85 | |||||||
| SY 50-1 AP | 15.875 | 9.53 | 10.16 | 5.08 | 20.5 | 22.0 | 10.2 | 11.8 | 14.6 | 2.0 | - | 31.90 | 7.22 | 0.98 |
| SY 50-2 AP | 38.4 | 40.0 | 19.2 | 20.8 | 18.1 | 63.80 | 10.70 | 2.00 | ||||||
| SY 50-3 AP | 56.7 | 58.2 | 28.4 | 29.8 | 95.70 | 15.70 | 3.07 | |||||||
| SY 60-1 AP | 19.05 | 12.70 | 11.91 | 5.95 | 25.7 | 26.9 | 12.8 | 14.1 | 17.5 | 2.4 | - | 43.10 | 10.70 | 1.46 |
| SY 60-2 AP | 48.2 | 49.7 | 24.0 | 25.7 | 22.8 | 86.20 | 14.70 | 2.95 | ||||||
| SY 60-3 AP | 71.2 | 72.6 | 35.2 | 37.4 | 129.00 | 21.60 | 4.43 | |||||||
| SY 80-1 AP | 25.40 | 15.88 | 15.88 | 7.93 | 33.0 | 35.5 | 16.4 | 19.1 | 23.4 | 3.2 | - | 78.50 | 19.10 | 2.52 |
| SY 80-2 AP | 61.6 | 64.5 | 30.8 | 33.7 | 29.3 | 157.00 | 25.00 | 5.10 | ||||||
| SY 80-3 AP | 90.9 | 94.1 | 45.5 | 48.6 | 236.00 | 36.80 | 7.68 | |||||||
| SY 100-1 AP | 31.75 | 19.05 | 19.05 | 9.53 | 39.6 | 43.0 | 19.7 | 23.3 | 29.3 | 4.0 | - | 118.00 | 29.40 | 3.91 |
| SY 100-2 AP | 75.1 | 78.8 | 37.6 | 41.2 | 35.8 | 236.00 | 38.40 | 7.74 | ||||||
| SY 100-3 AP | 110.9 | 114.6 | 55.5 | 59.1 | 354.00 | 56.50 | 11.58 | |||||||
| SY 120-1 AP | 38.10 | 25.40 | 22.23 | 11.10 | 49.7 | 53.4 | 24.8 | 28.6 | 35.1 | 4.8 | - | 167.00 | 39.50 | 5.76 |
| SY 120-2 AP | 94.9 | 98.8 | 47.5 | 51.3 | 45.4 | 334.00 | 51.70 | 11.49 | ||||||
| SY 120-3 AP | 140.3 | 144.2 | 70.2 | 74.0 | 501.00 | 76.00 | 17.20 | |||||||
| SY 140-1 AP | 44.45 | 25.40 | 25.40 | 12.70 | 54.0 | 58.3 | 27.0 | 31.3 | 40.9 | 5.6 | - | 216.00 | 52.30 | 7.41 |
| SY 140-2 AP | 102.9 | 107.2 | 51.5 | 55.7 | 48.9 | 432.00 | 68.30 | 14.63 | ||||||
| SY 140-3 AP | 151.7 | 156.3 | 75.9 | 80.4 | 648.00 | 101.00 | 21.91 | |||||||
| SY 160-1 AP | 50.80 | 31.75 | 28.58 | 14.28 | 64.3 | 68.7 | 32.2 | 36.5 | 46.7 | 6.4 | - | 275.00 | 69.00 | 9.79 |
| SY 160-2 AP | 122.8 | 127.2 | 61.4 | 65.8 | 58.5 | 550.00 | 90.10 | 19.45 | ||||||
| SY 160-3 AP | 181.3 | 185.7 | 90.7 | 95.0 | 825.00 | 133.00 | 29.17 | |||||||
| SY 180-1 AP | 57.15 | 35.70 | 35.70 | 17.45 | 72.5 | 78.4 | 36.3 | 42.1 | 52.5 | 7.2 | - | 353.00 | 79.00 | 13.39 |
| SY 180-2 AP | 138.2 | 144.0 | 69.1 | 74.9 | 65.8 | 706.00 | 98.40 | 26.62 | ||||||
| SY 180-3 AP | 204.5 | 210.2 | 102.3 | 107.9 | 1,059.00 | 145.00 | 39.85 | |||||||
| SY 200-1 AP | 63.50 | 38.10 | 39.67 | 19.83 | 78.5 | 87.0 | 39.3 | 47.7 | 59.8 | 8.0 | - | 451.00 | 93.00 | 16.93 |
| SY 200-2 AP | 150.2 | 158.7 | 75.1 | 83.6 | 71.6 | 902.00 | 122.00 | 33.73 | ||||||
| SY 200-3 AP | 221.7 | 230.2 | 110.9 | 119.3 | 1,353.00 | 179.00 | 50.53 | |||||||
| SY 240-1 AP | 76.20 | 47.63 | 47.63 | 23.78 | 95.5 | 104.0 | 47.8 | 56.2 | 70.3 | 9.5 | - | 677.00 | 129.00 | 23.64 |
| SY 240-2 AP | 183.4 | 191.8 | 91.7 | 100.1 | 87.8 | 1,354.00 | 167.00 | 47.13 | ||||||
| SY 240-3 AP | 271.3 | 279.6 | 135.7 | 143.9 | 2,031.00 | 245.00 | 70.61 | |||||||
80 AP 3列 と 100 APから180 APの継手リンクは全て割りピン式です。200 AP以上の継手リンクは全て通しSピン式です。Aqua-Proof仕様の製品が直接食品に接触する場合や剥離片や摩耗粉が食品に混入する恐れがある場合は、使用しないでください。1ピッチオフセットリンクをご使用の場合の最大許容荷重は上記の65%になります。
