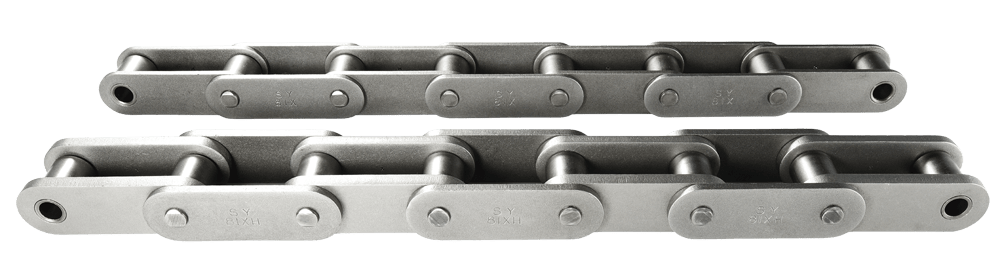

81XEngineering Chain
-｜-｜Speciality
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Approx. Weight |
||||||||
| Pitch | Roller | Pin | Plate | ||||||||
| Width | Dia. | Dia. | Length | Height | Thickness | ||||||
| P | W | R | D | L1 | L2 | H | T1 | T2 | KN | kg/m | |
| 81X | 66.27 | 27.0 | 23.0 | 11.10 | 24.0 | 28.4 | 28.6 | 3.9 | 3.9 | 110.00 | 3.9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 81XH | 30.2 | 34.1 | 32.1 | 5.5 | 8.0 | 187.00 | 5.8 | ||||
| 81XH-S | 32.0 | 36.3 | 32.1 | 8.0 | 8.0 | 187.00 | 6.8 | ||||
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Approx. Weight |
||||||||
| Pitch | Roller | Pin | Plate | ||||||||
| Width | Dia. | Dia. | Length | Height | Thickness | ||||||
| P | W | R | D | L1 | L2 | H | A | T | KN | kg/m | |
| 81X Pusher | 66.27 | 27.0 | 23.0 | 11.10 | 24.0 | 28.4 | 28.6 | 65.1 | 3.9 | 110.00 | 5.5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SY Chain No. | Dimension - mm | Average Tensile Strength |
Approx. Weight |
|||||||||
| Pitch | Roller | Pin | Plate | Roof Width |
Roof Height |
|||||||
| Width | Dia. | Dia. | Length | Height | Thickness | |||||||
| P | W | R | D | L1 | L2 | H | T | M | HH | KN | kg/m | |
| 81X Roof Top | 66.27 | 27.0 | 23.0 | 11.10 | 24.0 | 28.4 | 28.6 | 3.9 | 63.5 | 25.4 | 110.00 | 5.5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
